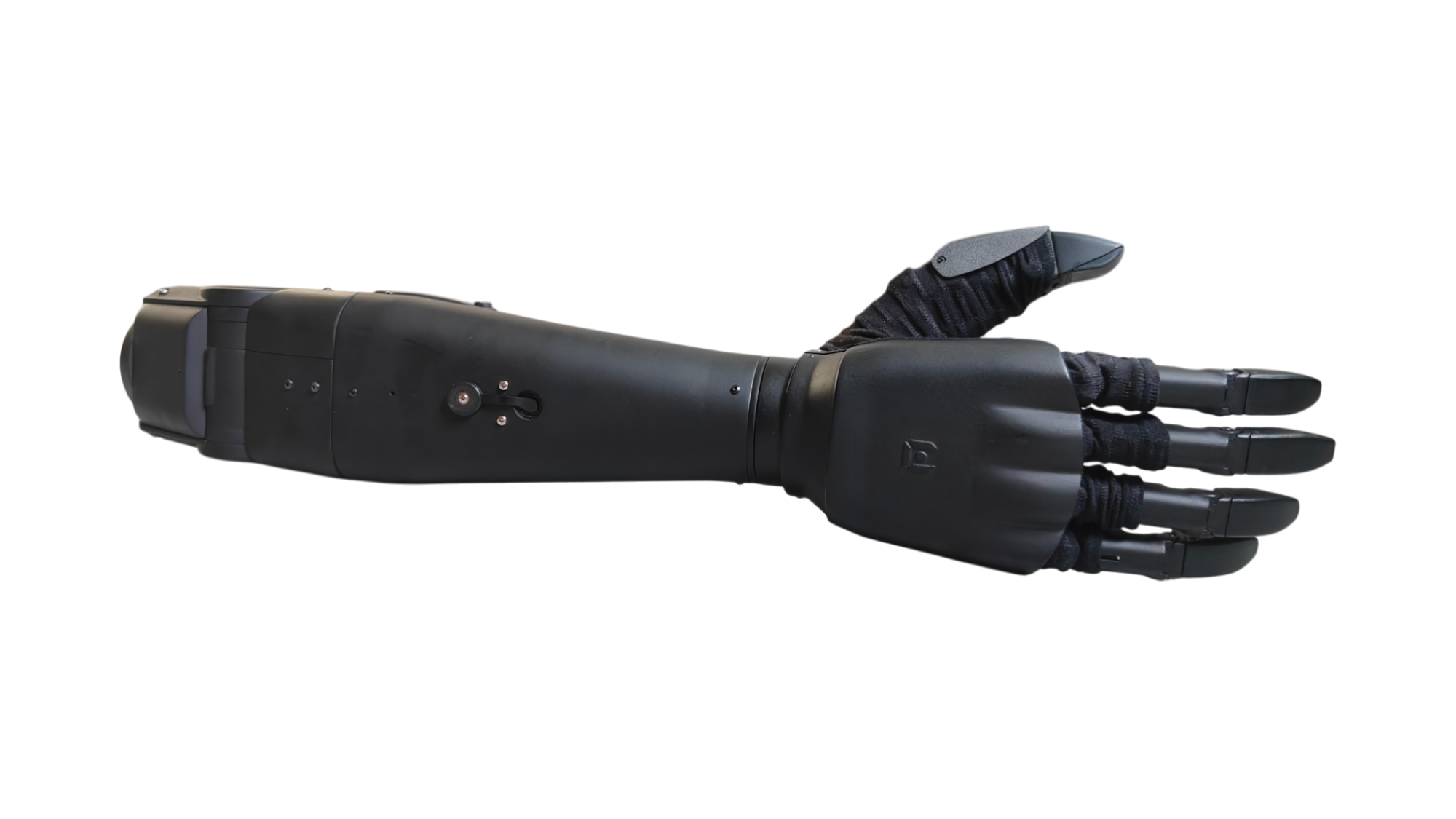

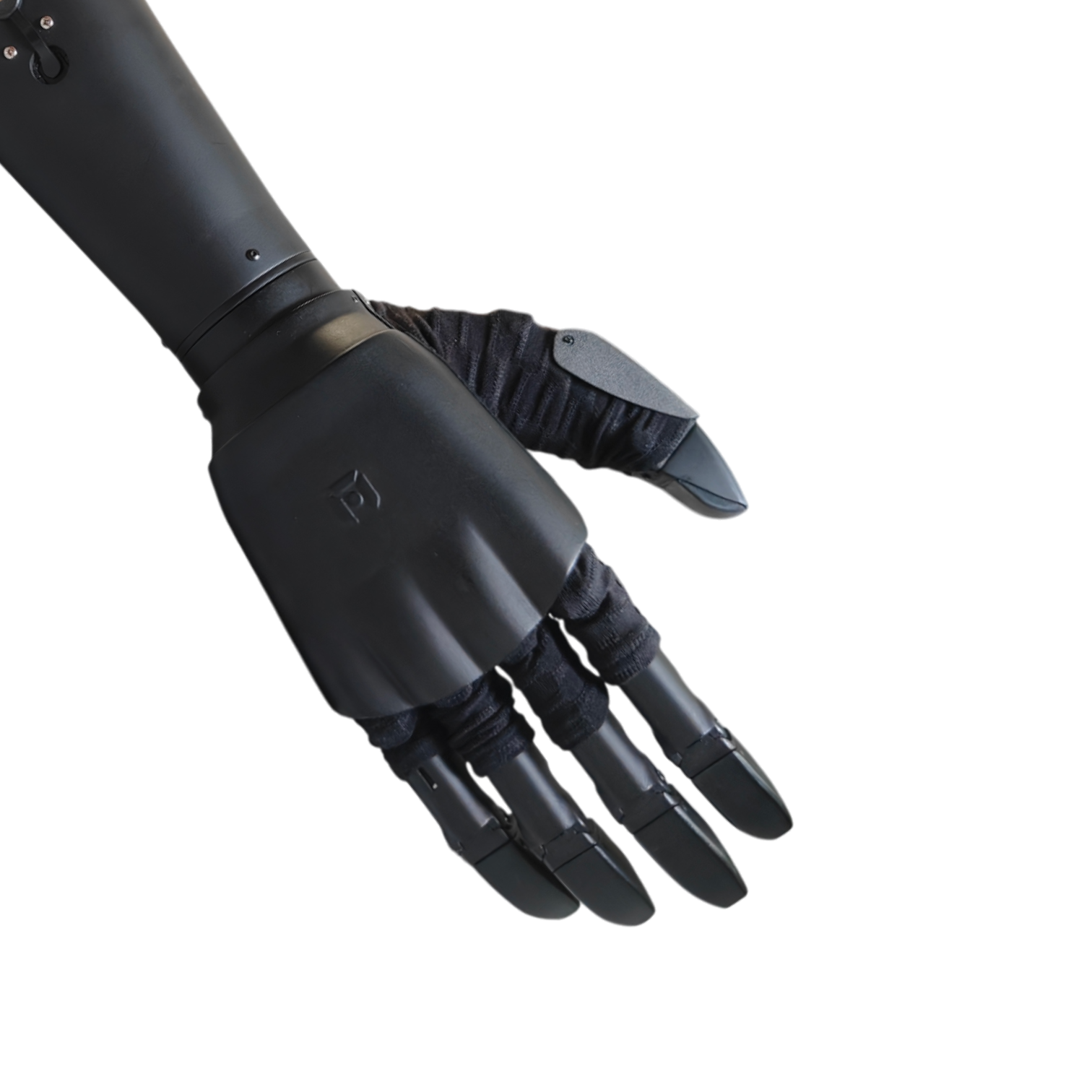

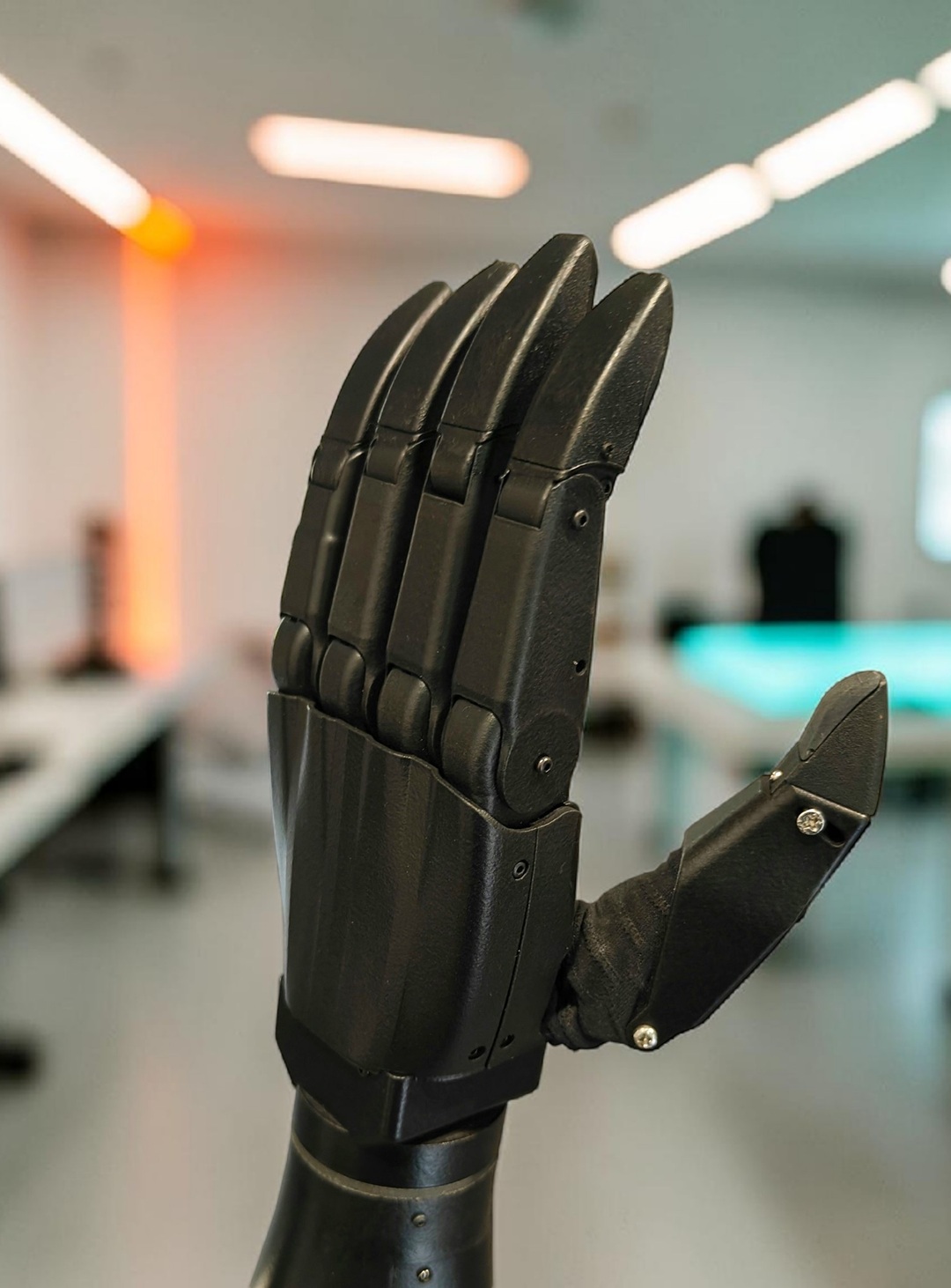

A myoelectric bionic hand engineered from the ground up for real-world performance. Lighter than most human hands. Smarter than anything else in India.
Every component is chosen for its role under real-world stress — from the nylon shell that absorbs impact to the stainless steel linkages that transmit precise motor force to each fingertip.
Surface EMG electrodes in the socket detect microvolt-level muscle signals from your residual limb. The onboard processor classifies intent in real time - translating intention into motion in under 80ms.
Flex the extensor muscle group. The hand opens smoothly across all five digits simultaneously.
Flex the flexor muscle group. Grip strength and speed respond proportionally to contraction intensity.
Co-contract both muscle groups simultaneously. The hand locks in its current position — zero effort required to maintain a grip.

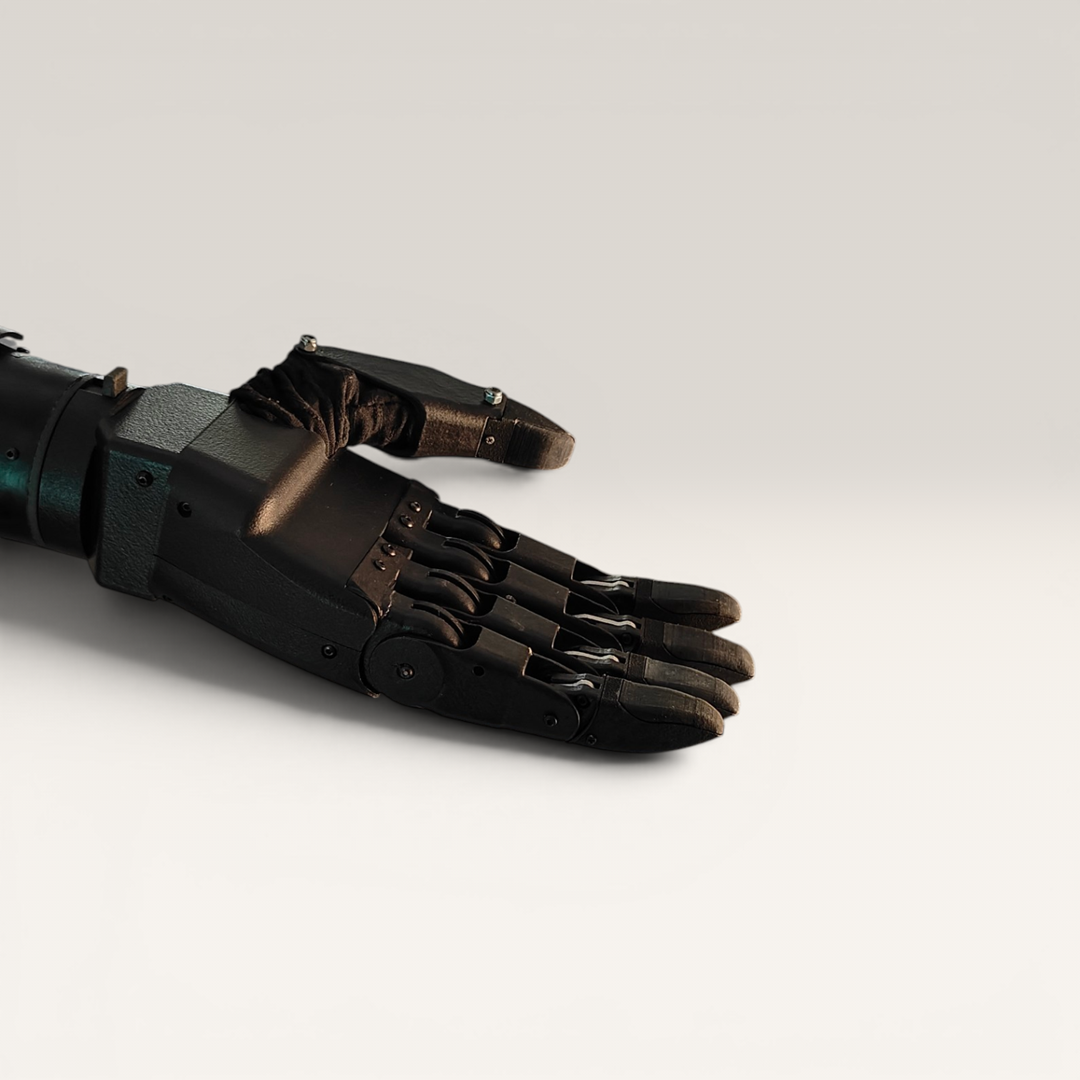

Thumb aligned parallel to fingers. Used for power grip, cylindrical, and hook patterns.

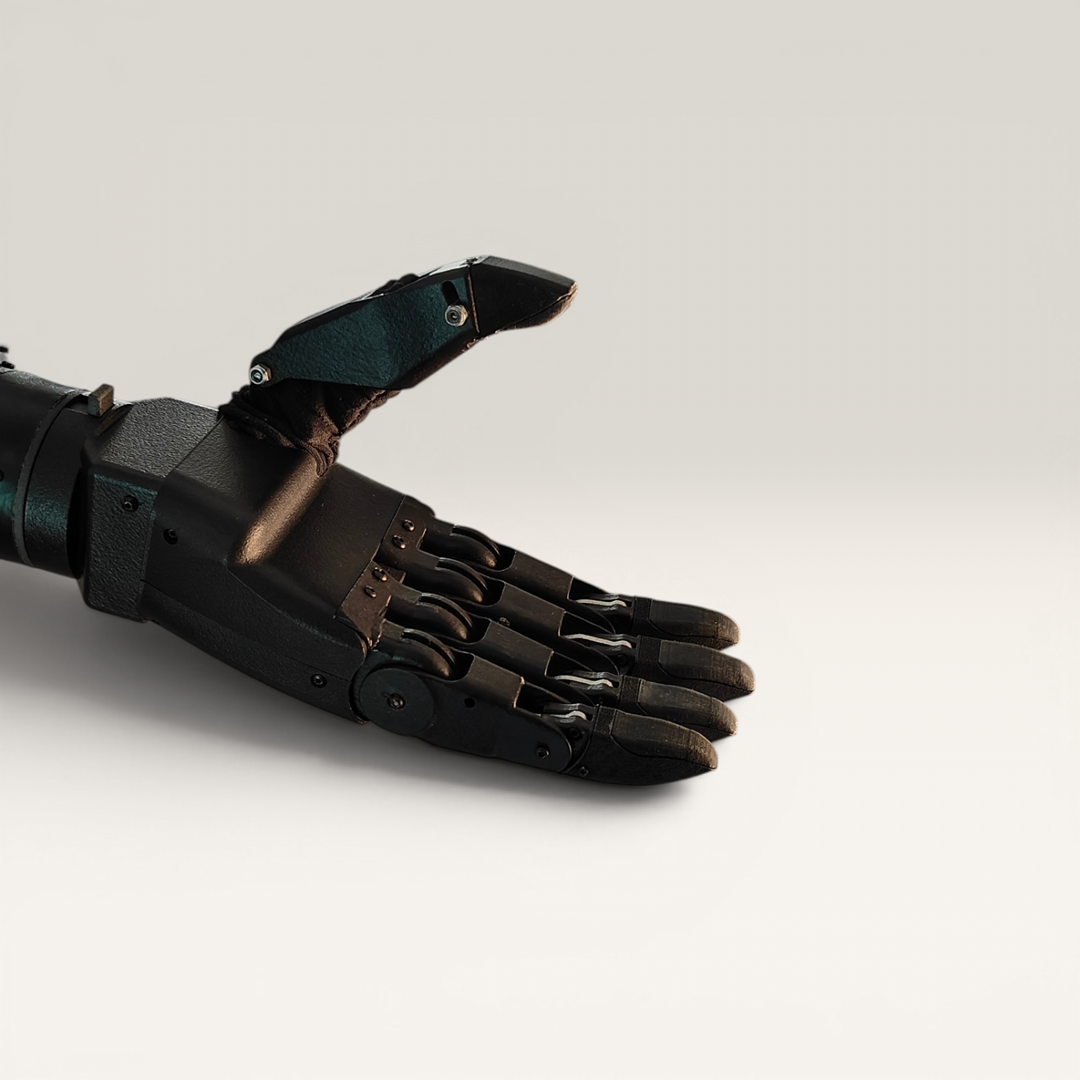

Thumb rotated across the palm. Enables tripod, pinch, and lateral key-grip patterns.
An onboard display shows open, close, and freeze signal levels live - letting users understand and calibrate their muscle input instantly.
Co-contract to lock the hand in any position - maintaining grip without continuous muscle effort. Reduces fatigue significantly during extended tasks.
Grip speed and force scale with contraction intensity. Soft grip for eggs. Full force for tools. Intuitive from day one.

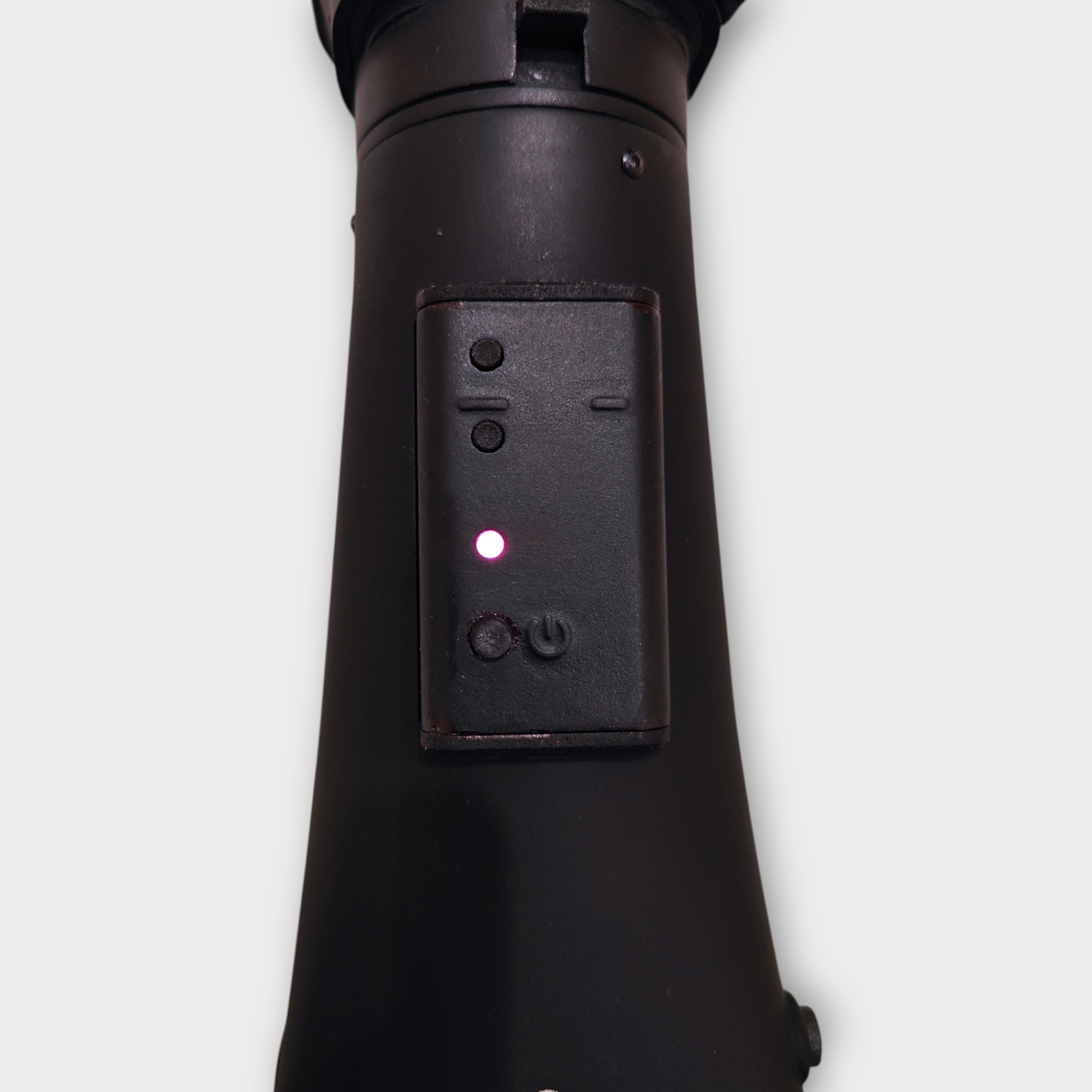

Embedded indicator LEDs communicate grip mode and battery status at a glance — without needing a phone or app.
Onboard classifier learns each user's unique EMG profile — improving grip detection accuracy over time through use.
Switched with a co-contraction signal or a button press - cycle forward or backward through modes without any external device.
Shake Hand
Precision Grip
Tripod Grip
Key Grip
Hook Grip

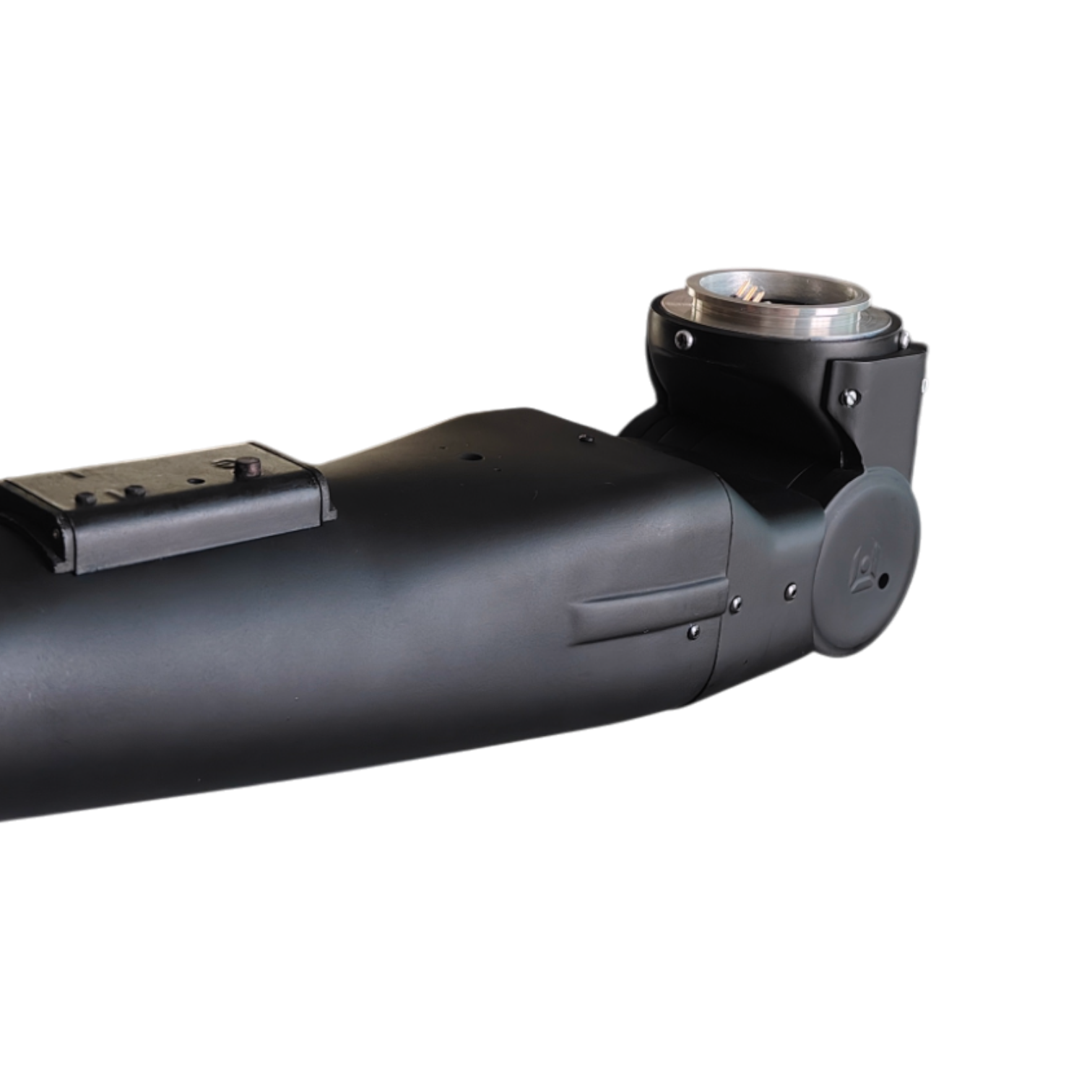

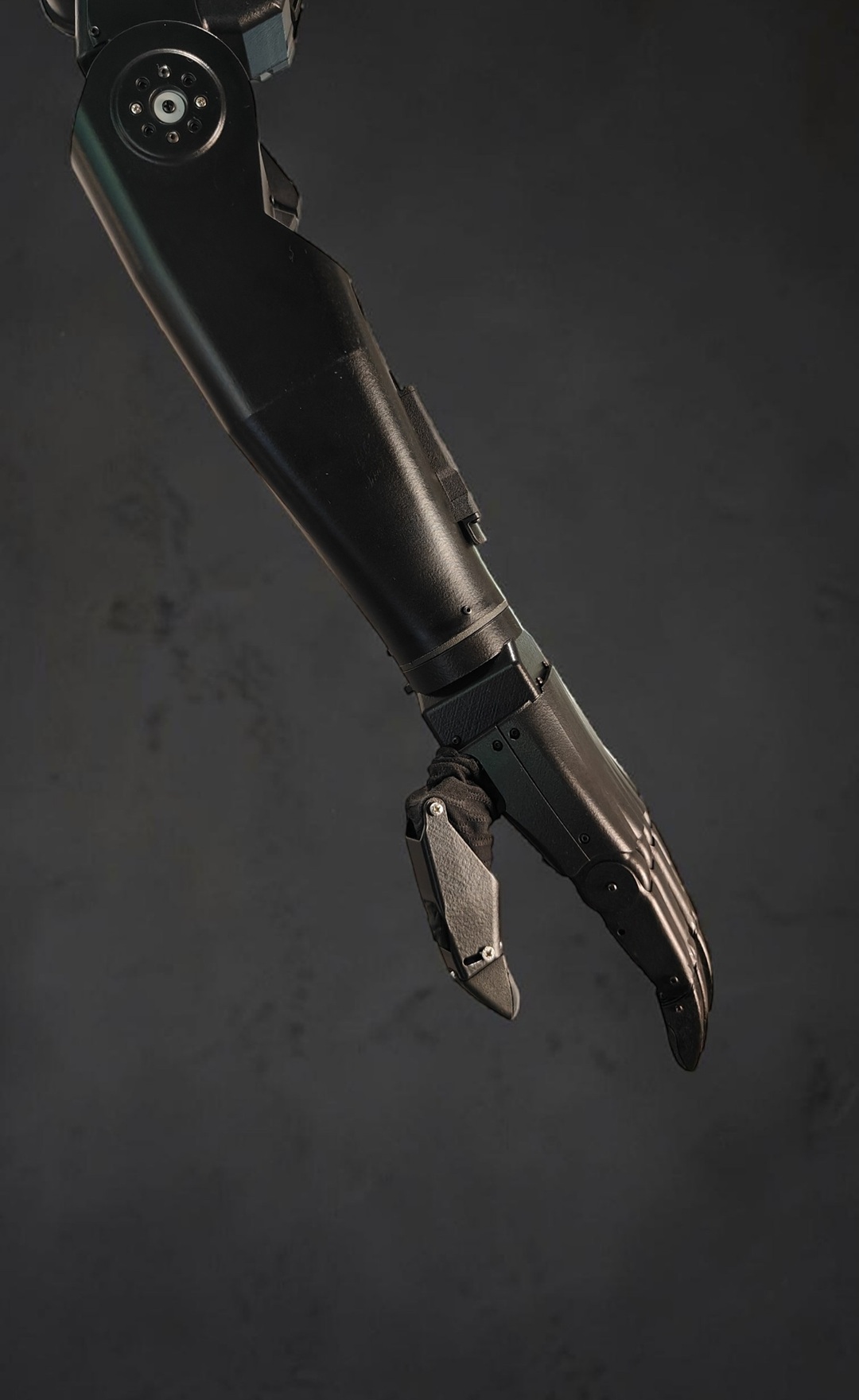

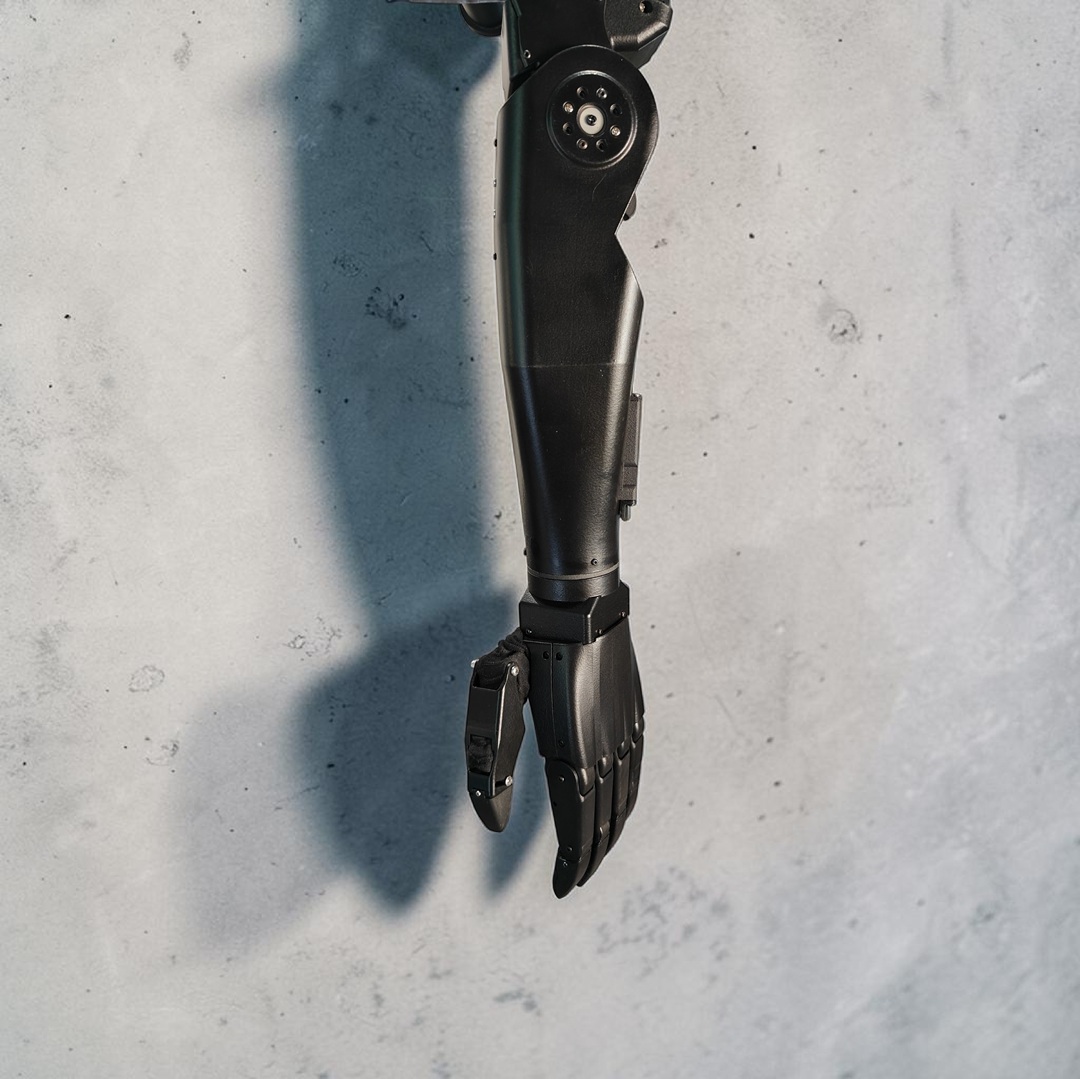

The Angel Elbow is a motorized prosthetic elbow that pairs with the Angel Hand to create a complete above-elbow arm system. EMG and shoulder flexion control. SafeDrop. Unpowered hold.
Hand Weight [1]
Grip Force
Closing Speed
Max Carry Load
Powered Thumb Rotation
Feedback
Angel Hand
400gm
Upto 75N
1.2s
Upto 8Kg
Yes
Yes - Visual
Elbow Weight [1]
Motorised
Max Payload
Elbow Closing Speed
Un-Powered Hold [2]
Gesture Control
Safety Manual Control [3]
Angel Elbow
960gm
Yes
1Kg
2s
Yes
Yes
Yes
